EODD Pump

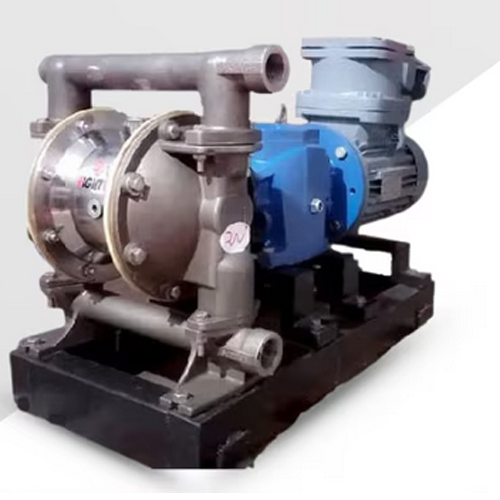

• Application
• Other, Chemical Industry, Sewage, Food & Beverage, Mining and General Industrial

• Caliber
• 1/2 inch

• Capacity
• up to 57 L/min

• Control System
• Manual/Air Supply Adjusted

• Discharge Pressure
• up to 7 bar (100 psi)

• Features
• Portable, Self-priming, Dry Running Capable, Explosion Proof

• Flow Rate
• up to 57 L/min

• Head Size
• up to 70 meters

• Inlet/Outlet
• 1/2 inch BSP/NPT

• Material
• Aluminium body with PTFE/Buna-N diaphragms

• Max Suction
• 5 meters (Wet), 1 meter (Dry)

• Mounting Type
• Base Mounted

• Noise Level
• 80 dB(A)

• Power
• Other, Compressed Air (No direct electrical power)

• Pressure
• Other, up to 7 bar (100 psi)

• Priming
• Self-priming

• Pump Type
• Other, AODD (Air Operated Double Diaphragm)

• Seals Type
• Buna-N / Viton / PTFE (Varies by Configuration)

• Speed
• Variable; Depends on Air Supply

• Standard
• ISO 9001:2015

• Structure
• Other, Double Diaphragm Pump

• Suction Type
• Positive Displacement

• Theory
• Other, Air Operated Double Diaphragm (AODD) Pump

• Usage
• Other, Chemical transfer, water, solvents, and light corrosive fluids

• Voltage
• Not Applicable (Air Operated)

• Working Temperature
• -10C to 80C (approx.)

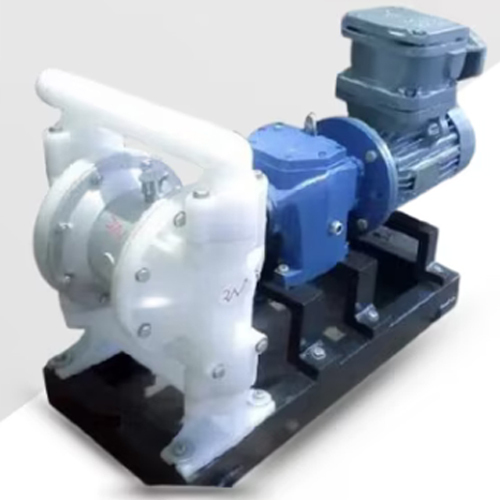

• Application
• Other, Chemicals, Solvents, Water, Oil, Acids, Alkalis

• Caliber
• 1 inch

• Capacity
• up to 133 L/min

• Control System
• Pneumatic

• Discharge Pressure
• 8.4 bar

• Features
• Corrosion Resistant, Self-Priming, Leakproof, Portable

• Flow Rate
• up to 133 L/min

• Fuel Type
• Other, Air-driven

• Head Size
• up to 84 metres

• Inlet/Outlet
• 1 inch (25 mm)

• Material
• Aluminium

• Max Suction
• 6 metre

• Mounting Type
• Base Mounted

• Noise Level
• <80 dB(A)

• Power
• Other, Pneumatic Operation

• Pressure
• Other, up to 8.4 bar

• Priming
• Self-priming

• Pump Type
• Other, Air Operated Diaphragm Pump

• Seals Type
• PTFE, Nitrile

• Speed
• Variable, Dependent on Air Supply

• Standard
• ISO 9001 Certified

• Structure
• Other, Double Diaphragm Pump

• Suction Type
• Positive Displacement

• Theory
• Other, Electro-Operated Double Diaphragm (EODD)

• Usage
• Other, Industrial Fluid Transfer

• Working Temperature
• -10C to 120C

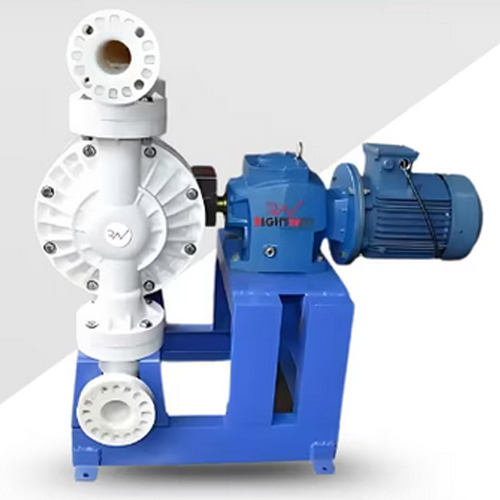

• Application
• Other, Chemical, Industrial, Water Treatment

• Caliber
• 1.5 Inch

• Capacity
• Up to 140 LPM

• Control System
• Manual/Automatic

• Discharge Pressure
• Up to 7 bar

• Features
• Corrosion Resistant, Leak Proof, Dry Run Capable

• Flow Rate
• Up to 140 LPM

• Frequency
• 50/60 Hz

• Fuel Type
• Other, Electric

• Head Size
• Up to 70 m

• Inlet/Outlet
• 1.5 Inch (38 mm)

• Material
• Polypropylene (PP)

• Max Suction
• 5.5 m (Dry Suction)

• Mounting Type
• Base Mounted

• Noise Level
• <75 dB(A)

• Power
• Other, Electric Motor Driven

• Pressure
• Other, Up to 7 bar

• Priming
• Self-Priming

• Pump Type
• Other, EODD Polypropylene Pump

• Seals Type
• PTFE (Optional EPDM, Buna-N)

• Speed
• Variable, as per motor

• Standard
• ISO 9001

• Structure
• Diaphragm Pump

• Suction Type
• Self-Priming

• Theory
• Other, Diaphragm Pump (EODD - Electrically Operated Double Diaphragm)

• Usage
• Other, Chemical Transfer, Wastewater, Acidic and Corrosive Fluid Handling

• Voltage
• Not Required (Pneumatic Operation)

• Working Temperature
• -10C to 70C

• Application
• Other, Chemical Transfer, Process Industry, Effluent, ETP, STP

• Caliber
• 1 Inch

• Capacity
• 75 LPM

• Control System
• Manual/Electronic

• Discharge Pressure
• 6-7 kg/cm2

• Features
• Corrosion Resistant, Leak Proof, Chemical Resistant, Dry Run Capability

• Flow Rate
• 75 LPM

• Frequency
• 50 Hz

• Fuel Type
• Other, Electric

• Head Size
• Up to 70 meters

• Inlet/Outlet
• 1 inch BSP(F)

• Material
• Polypropylene (PP)

• Max Suction
• 4 meters (Dry Suction)

• Mounting Type
• Base Mounted

• Noise Level
• < 75 dB

• Power
• Other, 0.75 kW

• Pressure
• Other, 7 kg/cm2

• Priming
• Self-Priming

• Pump Type
• Other, EODD Polypropylene Pump

• Seals Type
• PTFE / Viton / EPDM

• Speed
• 2800 RPM

• Standard
• ISO 9001:2015

• Structure
• Other, Double Diaphragm Pump

• Suction Type
• Positive Displacement

• Theory
• Other, Electrically Operated Double Diaphragm (EODD) Pump

• Usage
• Other, Acids, Chemicals, Solvents, Transfer

• Voltage
• 220V

• Working Temperature
• Up to 80C

• Application
• Other, Chemical process industry, water treatment, effluent transfer

• Caliber
• 1 inch

• Capacity
• 9 m3/h

• Control System
• Electronic controller

• Discharge Pressure
• 7 bar

• Features
• Corrosion resistant, Leak proof, Dry run capability

• Flow Rate
• 150 LPM

• Frequency
• 50 Hz / 60 Hz

• Fuel Tank Capacity
• N/A (electric powered)

• Fuel Type
• Other, Electric

• Head Size
• 70 meters max

• Inlet/Outlet
• 1 inch BSPT

• Material
• PVDF (Polyvinylidene fluoride)

• Max Suction
• 5 meters (Dry Lift)

• Mounting Type
• Base mounted

• Noise Level
• Less than 75 dB

• Power
• Other, 0.75 kW

• Pressure
• Other, 7 bar max

• Priming
• Self-priming

• Pump Type
• Other, EODD PVDF pump

• Seals Type
• PTFE / FEP

• Speed
• 1400 RPM

• Standard
• ISO 9001:2015

• Structure
• Other, Double Diaphragm

• Suction Type
• Self-priming suction

• Theory
• Other, Electro-Operated Double Diaphragm (EODD)

• Usage
• Other, Acids, Solvents, Chemicals handling

• Voltage
• 220 V / 380 V

• Working Temperature
• -10C to 80C

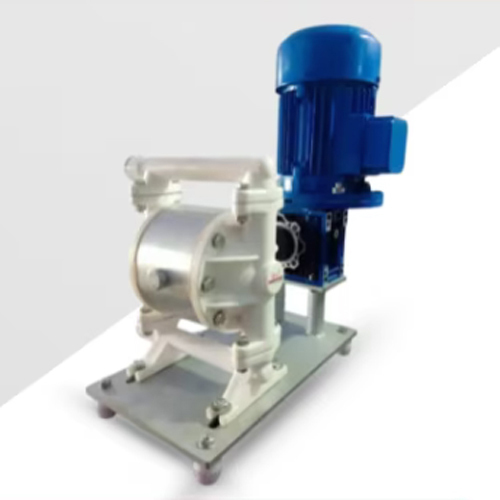

• Application
• Other, Chemical Process Industry, Electroplating, Water Treatment

• Caliber
• 1/2 Inch

• Capacity
• 45 LPM

• Control System
• Manual / Pneumatic Control

• Discharge Pressure
• up to 7 bar

• Features
• Corrosion Resistant, Leak Free Operation, High Chemical Compatibility

• Flow Rate
• 45 LPM (Liters per Minute)

• Head Size
• up to 70 meters

• Inlet/Outlet
• 1/2 Inch BSPT (Female Thread)

• Material
• PVDF (Polyvinylidene Fluoride) Body, PTFE Diaphragm, SS Fasteners

• Max Suction
• 5 meters (Dry), up to 8 meters (Wet)

• Mounting Type
• Floor Mounted / Skid Mounted

• Noise Level
• < 75 dB(A)

• Power
• Other, Pneumatic (Compressed Air Driven)

• Pressure
• Other, Max. 7 bar (100 psi)

• Priming
• Self-Priming

• Pump Type
• Other, EODD (Electric Operated Double Diaphragm) / Pneumatic Double Diaphragm Pump

• Seals Type
• PTFE / FKM

• Speed
• Variable, depends on air supply

• Standard
• ISO 9001:2015 Certified

• Structure
• Other, Double Diaphragm, Bolted Type Design

• Suction Type
• Dry / Wet Suction

• Theory
• Other, Reciprocating Pump (Double Diaphragm)

• Usage
• Other, Chemical Transfer, Acid Handling, High Purity Applications

• Voltage
• Not Applicable (Air Operated)

• Working Temperature
• -10C to 100C

• Application
• Other, Chemicals, Solvents, Water, Oils, Effluent

• Caliber
• 1.5 inch

• Capacity
• 133 LPM

• Control System
• Manual / Pneumatic Control

• Discharge Pressure
• Up to 7 bar

• Features
• Corrosion Resistant, Dry Run capable, Quick Installation

• Flow Rate
• 133 LPM (Liters per Minute)

• Fuel Type
• Other, Not Applicable (Air-driven)

• Head Size
• Up to 70 m

• Inlet/Outlet
• 1.5 inch (Threaded or Flanged)

• Material
• Aluminium

• Max Suction
• 5-7 m (Dry Suction Lift)

• Mounting Type
• Base-mounted

• Noise Level
• <85 dB(A)

• Power
• Other, Compressed Air

• Pressure
• Other, Up to 7 bar (100 psi)

• Priming
• Self-priming

• Pump Type
• Other, AODD (Air Operated Double Diaphragm)

• Seals Type
• PTFE/Viton

• Speed
• Variable (Controlled by Air Flow)

• Standard
• CE/ISO Standard

• Structure
• Other, Double Diaphragm (EODD)

• Suction Type
• Self-priming, Positive Displacement

• Theory
• Other, Diaphragm Pump

• Usage
• Other, Transfer of fluids, chemicals, and effluents

• Voltage
• Not Applicable (Air-operated)

• Working Temperature
• -10C to 80C

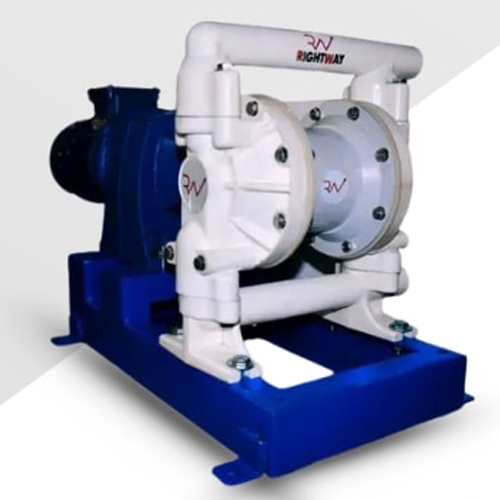

• Application
• Other, Acids, Solvents, Slurries, Paints, Oils, Wastewater

• Caliber
• 2 inch (50 mm)

• Capacity
• Approx. 5700 LPH

• Control System
• Pneumatic Control Valve

• Discharge Pressure
• Up to 8 bar

• Features
• Dry-Running Capability, Leak-Free, Portable, Corrosion-Resistant

• Flow Rate
• up to 5700 LPH (Liters Per Hour)

• Fuel Type
• Other, Not Applicable (Air Driven)

• Head Size
• Up to 84 meters

• Inlet/Outlet
• 2 inch BSP/NPT

• Material
• Aluminium

• Max Suction
• 5-7 meters (Dry Lift)

• Mounting Type
• Base Mounted

• Noise Level
• 85 dB(A)

• Power
• Other, Pneumatic (Compressed Air)

• Pressure
• Other, Up to 8 bar (116 psi)

• Priming
• Self-Priming

• Pump Type
• Other, EODD (Electric Operated Double Diaphragm)

• Seals Type
• Buna-N, Viton, or PTFE (as per model)

• Speed
• Variable, depends on air supply

• Standard
• ISO 9001 Certified

• Structure
• Other, Air Operated Double Diaphragm (AODD)

• Suction Type
• Positive Displacement

• Theory
• Other, Diaphragm Pump

• Usage
• Other, Industrial, Chemical Transfer, Oil Transfer, Wastewater

• Voltage
• Not Applicable (Air Operated)

• Working Temperature
• Up to 80C

• Application
• Other, Chemical Industry, Effluent Treatment, Pharmaceuticals, Water Treatment

• Caliber
• 1/2 inch

• Capacity
• 40 LPM

• Control System
• Manual/ Pneumatic controls

• Discharge Pressure
• Up to 100 PSI

• Features
• Corrosion Resistant, Leak Proof, Self-Priming, Easy Maintenance

• Flow Rate
• Up to 40 LPM

• Fuel Type
• Other, Not Required (Air Powered)

• Head Size
• Up to 70 meters

• Inlet/Outlet
• 1/2 inch BSP/NPT Threaded

• Material
• Polypropylene (PP)

• Max Suction
• Up to 5 meters (Dry Lift)

• Mounting Type
• Base Mounted

• Noise Level
• Low Noise Operation

• Power
• Other, Pneumatic - Compressed Air

• Pressure
• Other, Up to 7 Bar (100 PSI)

• Priming
• Self-Priming

• Pump Type
• Other, Air Operated Double Diaphragm

• Seals Type
• PTFE / Viton / EPDM

• Speed
• Variable (depending on air supply)

• Standard
• ISO 9001 Certified

• Structure
• Other, Double Diaphragm (EODD)

• Suction Type
• Positive Suction

• Theory
• Reciprocating Pump

• Usage
• Other, Chemical Transfer, Acidic and Corrosive Fluids

• Voltage
• Not Applicable (Air Operated)

• Working Temperature
• Up to 65C

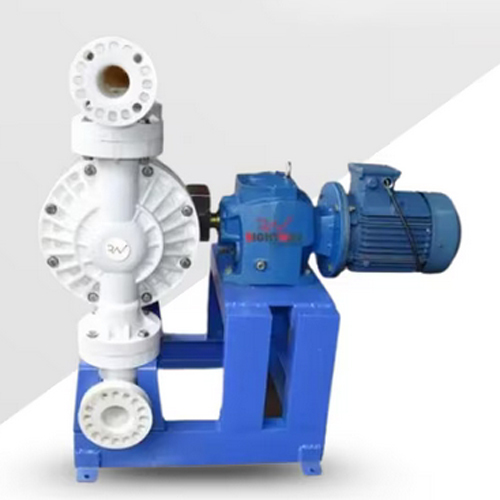

• Application
• Other, Chemical Process, Wastewater, Dyes & Paint, Electroplating

• Caliber
• 2 inch

• Capacity
• Up to 29 m3/h

• Control System
• Manual or Air Control Valve

• Discharge Pressure
• Up to 7 Bar

• Features
• Corrosion Resistance, Dry Running Capability, Easy Maintenance, Portable

• Flow Rate
• 480 LPM (Liters Per Minute)

• Frequency
• Not Required (No Electric Motor)

• Fuel Type
• Other, Air Operated (No Fuel Required)

• Head Size
• 80 meters

• Inlet/Outlet
• 2 inch BSP/NPT Threaded or Flange

• Material
• Polypropylene (Glass-Filled)

• Max Suction
• 5-6 meters (Dry Lift)

• Mounting Type
• Base Plate Mounted

• Noise Level
• Below 85 dB(A)

• Power
• Other, Compressed Air Driven

• Pressure
• Other, 7 Bar (Maximum Air Inlet Pressure)

• Priming
• Self-Priming

• Pump Type
• Other, EODD (Electrically Operated Double Diaphragm/actually Air Operated Double Diaphragm)

• Seals Type
• PTFE (Teflon) / EPDM / Viton (Options)

• Speed
• Variable with Air Supply

• Standard
• ISO 9001:2015 Certified

• Structure
• Other, Double Diaphragm

• Suction Type
• Self-Priming, Positive Suction

• Theory
• Other, Reciprocating Diaphragm Pump

• Usage
• Other, Chemical Transfer, Corrosive & Abrasive Fluids, Effluent Handling

• Voltage
• Not Applicable (Pneumatic Operation)

• Working Temperature
• Up to 60C
